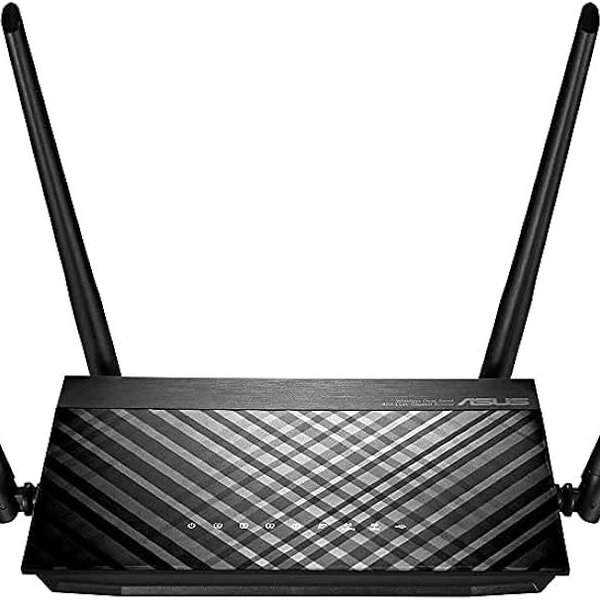

Modelo: RT-AC59U
Rede
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
IPv4
IPv6
Taxa de Dados Wi-Fi
802.11a: até 54 Mbps
802.11b: até 11 Mbps
802.11g: até 54 Mbps
802.11n: até 600 Mbps
802.11ac: até 867 Mbps
Antena
External antenna x 4
Tecnologia MIMO
2,4 GHz 4 x 4
5GHz 2x2
Processador
74Kc MIPS processor with 64 KB I-Cache and 32 KB D-Cache, targeted to operate at up to 775 MHz
Memória
16 MB Flash, 128 MB RAM
Beamforming: 802.11ac Explicit transmit beamforming (TxBF) and Legacy implicit TxBF for both beamformer and beamformee
256-QAM high data rate
20/40/80 MHz bandwidth
Frequencia de Operação
2.4G Hz / 5 GHz
Modos de Operação
Accesspoint, Mediabridge, Router
Entradas
4x RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN
1x USB 2.0
Botões
WPS Button, Reset Button, Power Button
LEDs Indicadores
Power x 1
Wi-Fi x 2
WAN x 1
USB x 1
LAN x 4
Fonte
AC Input : 100V~240V(50~60Hz)
DC Output : 12 V with max. 1.5 A current
Conteudo da Embalagem
RT-AC59U Gigabit Wi-Fi Router
Cabo RJ-45
Guia Rapido
Adaptador de Energia
Cartão de garantia
Dimensões
192x125 x 30 ~ mm (WxDxH)
Controle de Pais
Sim
Sim
Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
Guest Network Connection Time Limit
Guest Network Encryption : Open system, WPA/WPA2-Personal
Segurança
Open system, WPA/WPA2-Personal, WPA/WPA2-Enterprise
Maximum Firewall Keyword Filter : 64
Maximum Firewall Network Service Filter : 32
Maximum Firewall URL Filter : 64
VPN
Sim
Maximum Bandwidth Limiter Rule : 32
Maximum Traditional QoS Rule : 32
Traffic Analysis Period : Daily, Weekly, Monthly
WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Maximum Port Forwarding Rule : 64
Maximum Port Triggering Rule : 32
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
Wireless
• Maximum MAC Filters : 64
Aplicações USB
File System : FAT16, FAT32, NT3G, ext2, ext3
